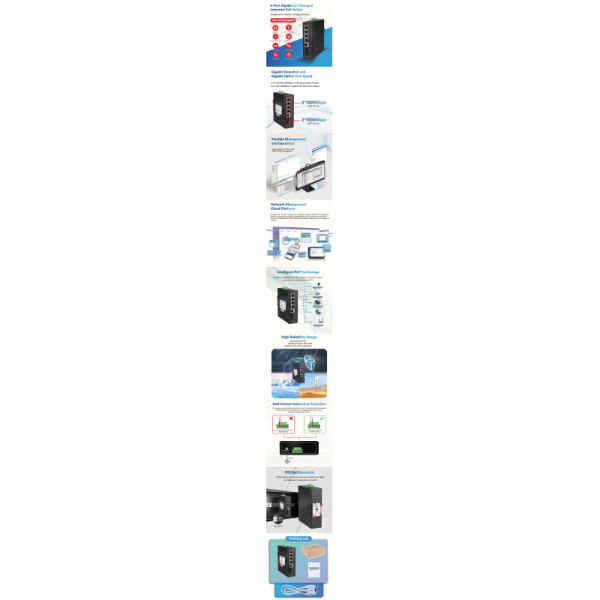

6 Port L2+ Gigabit Industrial PoE Switch With16Gbps Switching Capacity

The ONV-IPS33064PFM is a Gigabit managed industrial PoE fiber switch independently developed by ONV. It features 4×10/100/1000M adaptive RJ45 ports and 2×100/1000M uplink SFP fiber ports. Ports 1-4 support the IEEE 802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes compliant devices, supplying power through network cables to PoE terminal equipment such as wireless APs, IP cameras, VoIP systems, and industrial sensors. Ideal for high-density PoE power supply environments, it is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction, forming cost-effective, stable, and reliable communication networks.
The ONV-IPS33064PFM includes L2+ network management functions, supports IPv4/IPv6 management, static route forwarding, security protection mechanisms, ACL/QoS policies, and VLAN configurations for easy management and maintenance. It supports multiple network redundancy protocols, including STP/RSTP/MSTP (<50ms) and ERPS (<20ms), to enhance link backup and network reliability. In case of network failure, communication is quickly restored to ensure uninterrupted operation for critical applications. Through web management, users can configure PoE power management, port traffic control, VLAN division, and SNMP services based on actual requirements.

• Gigabit Access: Non-blocking wire-speed forwarding, full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Gigabit RJ45 and SFP port combination for flexible networking.
• Smart PoE Power Supply: PoE network management for power allocation, priority setting, status viewing, and time scheduling. Complies with IEEE802.3af/at standards, automatically identifies PoE devices without damaging non-PoE equipment. Priority support for high-priority ports during power constraints.
• Strong Business Processing Capability: IEEE802.1Q VLAN, Voice VLAN, QinQ configuration. STP/RSTP/MSTP spanning tree protocols for loop elimination and link backup. QoS with multiple priority modes and scheduling algorithms. ACL for data packet filtering and security policies.
• Security: Port isolation, storm control, IP+MAC+port+VLAN binding, 802.1X authentication for LAN computer access control.
• Stable and Reliable: CE, FCC, RoHS certifications. User-friendly LED indicators for device status. Low power consumption with aluminum alloy housing for excellent heat dissipation.
• Easy O&M Management: CPU monitoring, memory monitoring, Ping detection, and cable detection. Secure management via HTTPS, SSL, and SSH. RMON, system logs, and port traffic statistics. Multiple management methods, including Web, CLI, SNMP, and Telnet.

Note: The optical module and power supply are not included and need to be purchased separately.
